VEHICLE APPLICATION: 1997- 2001 CRV

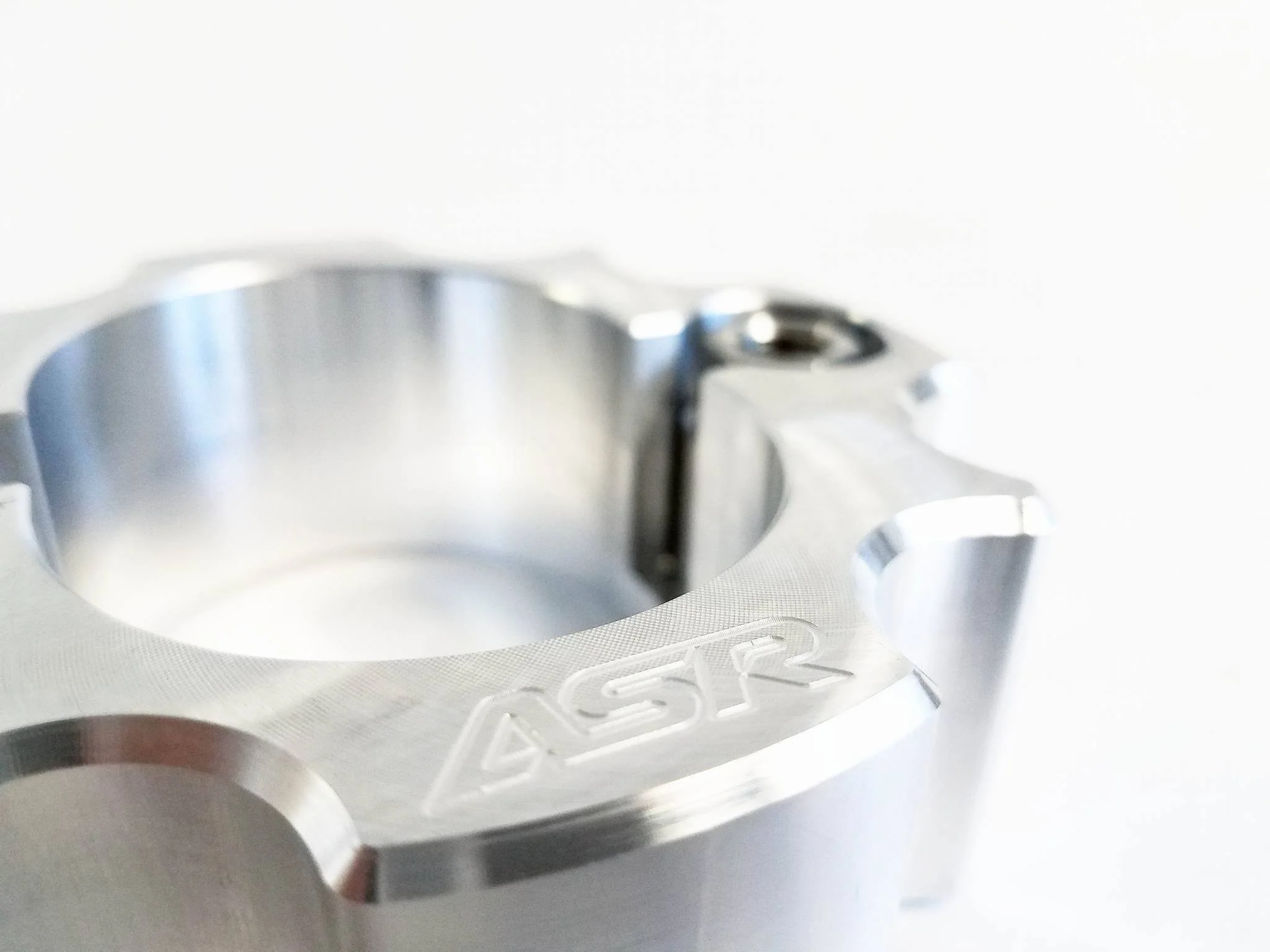

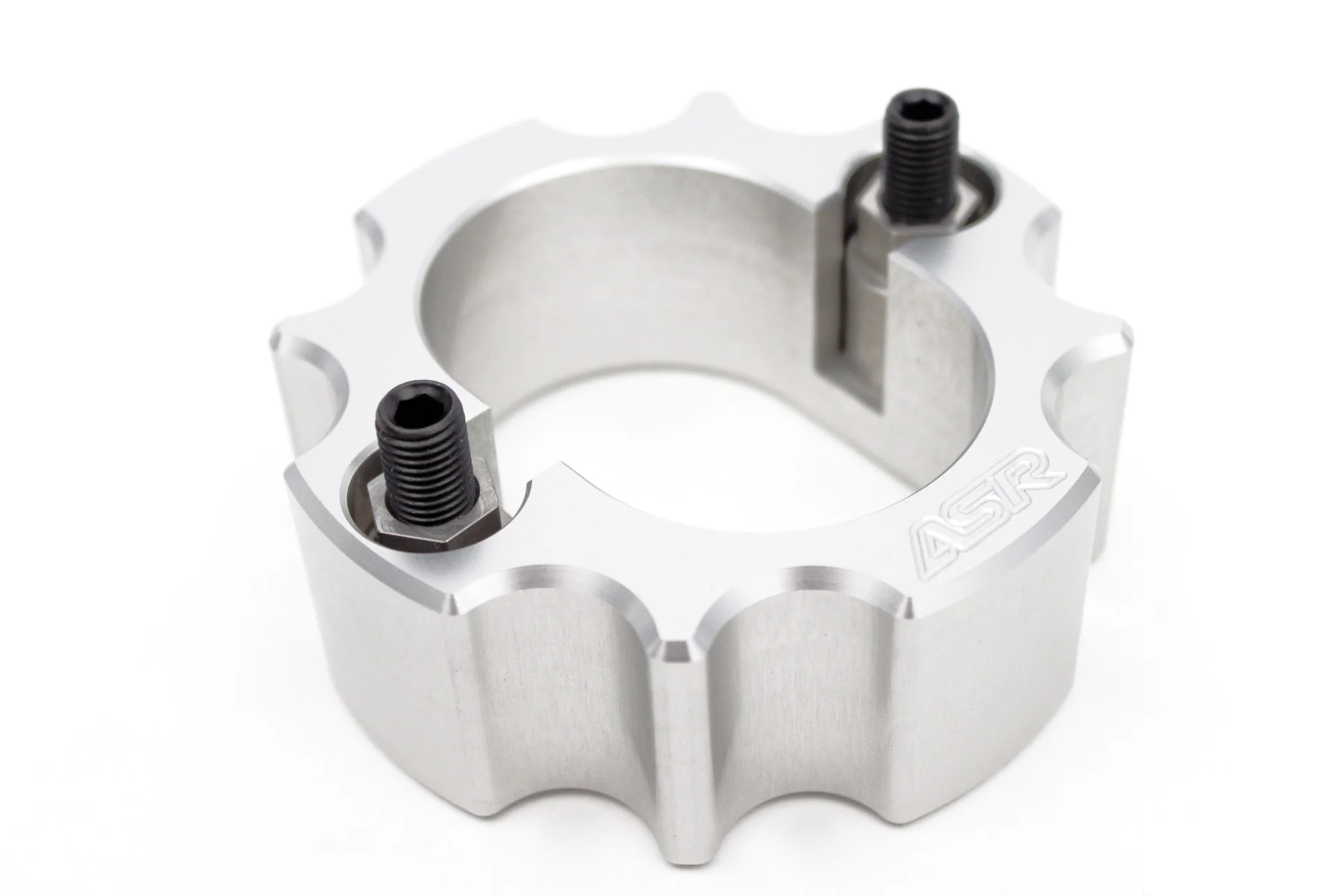

The ASR CR-V lift spacer kit raises the ride height of your vehicle for better ground clearance/stance. This product is not only functional, but aesthetically pleasing as can be expected from every ASR product. Lift spacers are designed, tested and CNC Machined in the U.S.A.

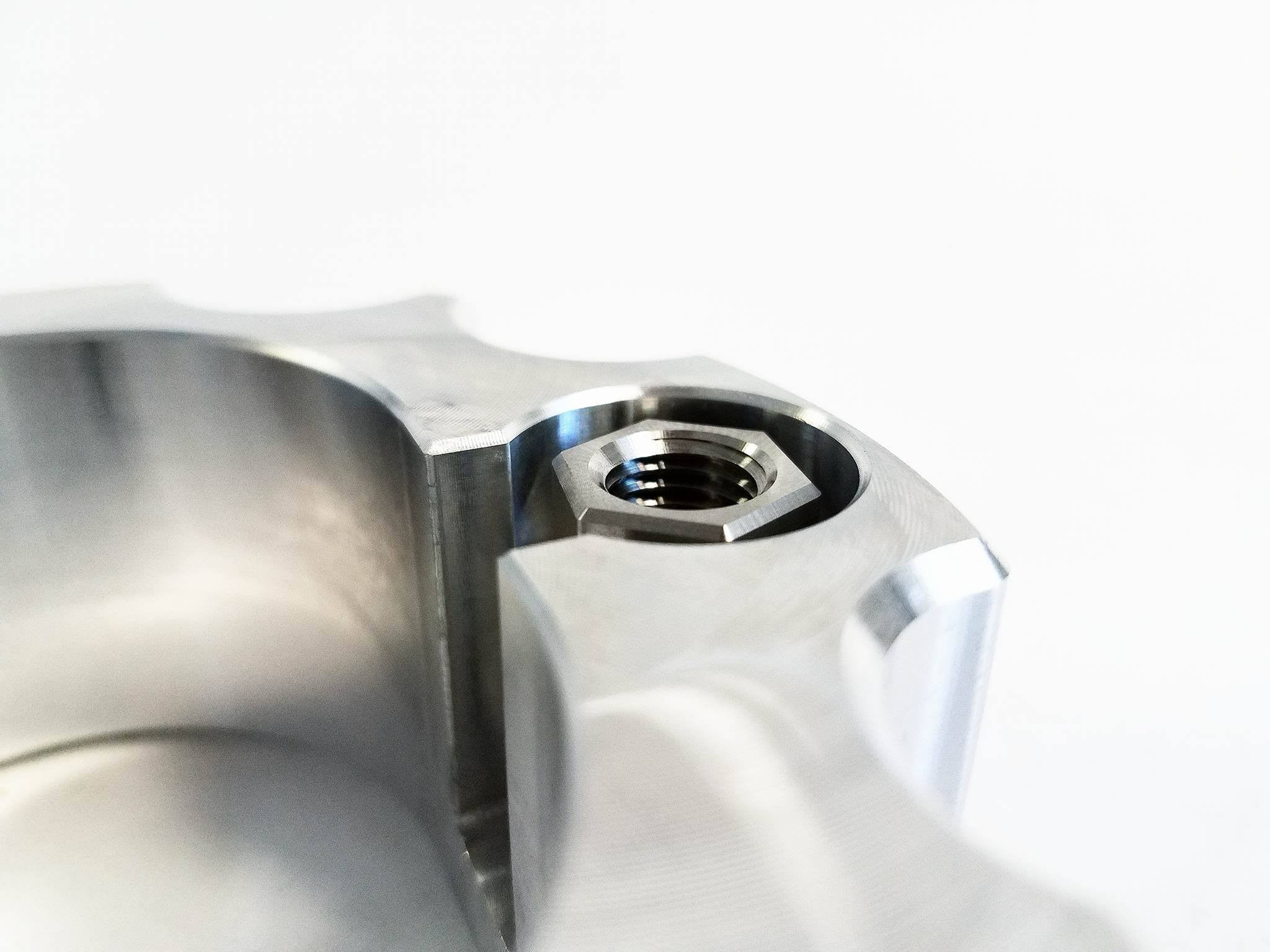

Installation of this product is very simple when compared to our competitors. Other lift spacers require a 90 degree "re-clocking" of the top hat which means you will need more than a basic socket set to install. With our lift spacer no re-clocking is needed, simply remove your shock assembly, slide the lift spacer over the oem top hat studs, use the supplied coupling nuts to tighten the spacer to the top hat, thread the supplied studs into the coupling nut and use your oem 14mm nuts to install your shock assembly back into your vehicle.

There are three height options; 1.0" inch, 1.5" inch and the 2.0" inch. The 1.0 and 1.5" lift spacers can be used interchangeably as for the front and rear top hats are identical. The 2.0" lift spacers are for the REAR only.

Here is some combination suggestions:

Type	Front	Rear

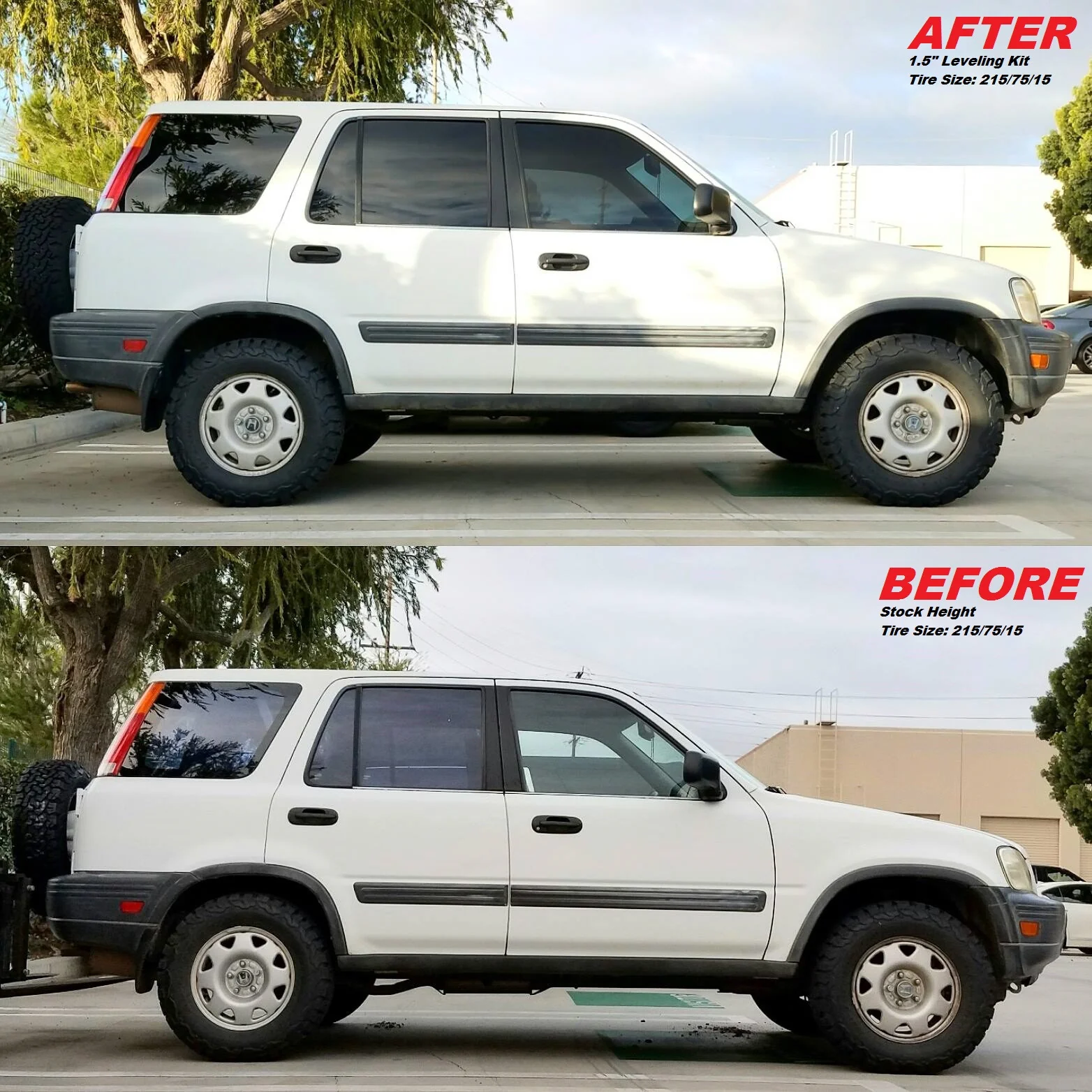

Leveling Kit	NONE	1.5"
Level Lift (recommended)	1.5"	2.0"
Positive Rake Lift	NONE	2.0"
Negative Rake Lift	1.5"	NONE
Stock Rake Lift	1.0"	1.5"



 Note:
- Items sold as pair
- When adding a REAR lift spacer ONLY the front slightly lifts.
- 2.0" spacers are for the REAR only.

Contents:

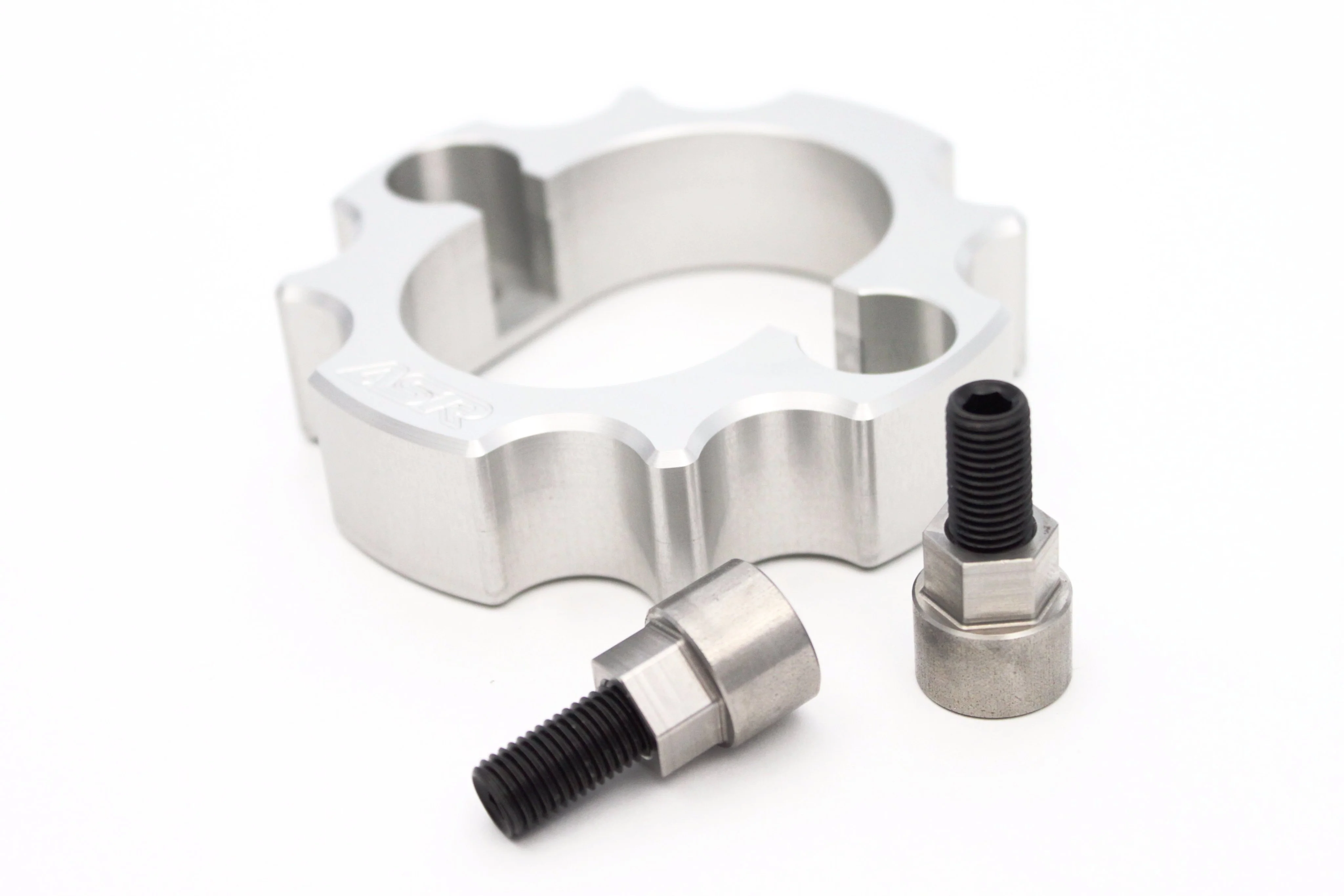

Pair Includes
2 - Lift Spacers

4 - Coupling Nuts

4 - Studs



**RECOMMEND PROFESSIONAL INSTALLATION**

MADE IN U.S.A.

---

NO VIDEO

---

CR-V Lift Spacer Install Instructions
